@ Adrian aka age69er43 & others interested.
I have an MY09 Aspire which came factory fitted with seat heaters but NO switch, connectors or wiring harness to activate them.
In mid 2014, I was luck enough to come across a wrecking Lancer which had the seat heaters, switch, connectors & wiring harness etc.
So I purchased everything (switch, connectors & wiring harness etc) except the seat since I already had them.
I fitted it all, and both Seat Heaters work on either Hi or Low setting, the Switch lights-up when vehicle lights are turned on.
Here is a detailed "self drawn - wiring diagram" of the "Factory OEM" wiring layout --->
As fitted from the Sub Board behind the Glove Box to the Switch in the Centre Console to the Wiring Connectors under the Seats.
Right Click then select View Image to enlarlge each diagram
Note: The colors on this diagram are the same colors as the Factory OEM Wiring Harness colors.
Here is another "self drawn - wiring diagram" supplied to me from another US source.
To complete this project, you will need all the Factory Wiring & Connectors already in your vehicle
(check under the Cup Holder section in your Console)
If you "DO NOT" have the Factory Wiring Harness & Connectors --->
Then you will need to Supply & Fit your own Fuse, Relay, Wires & Connectors.

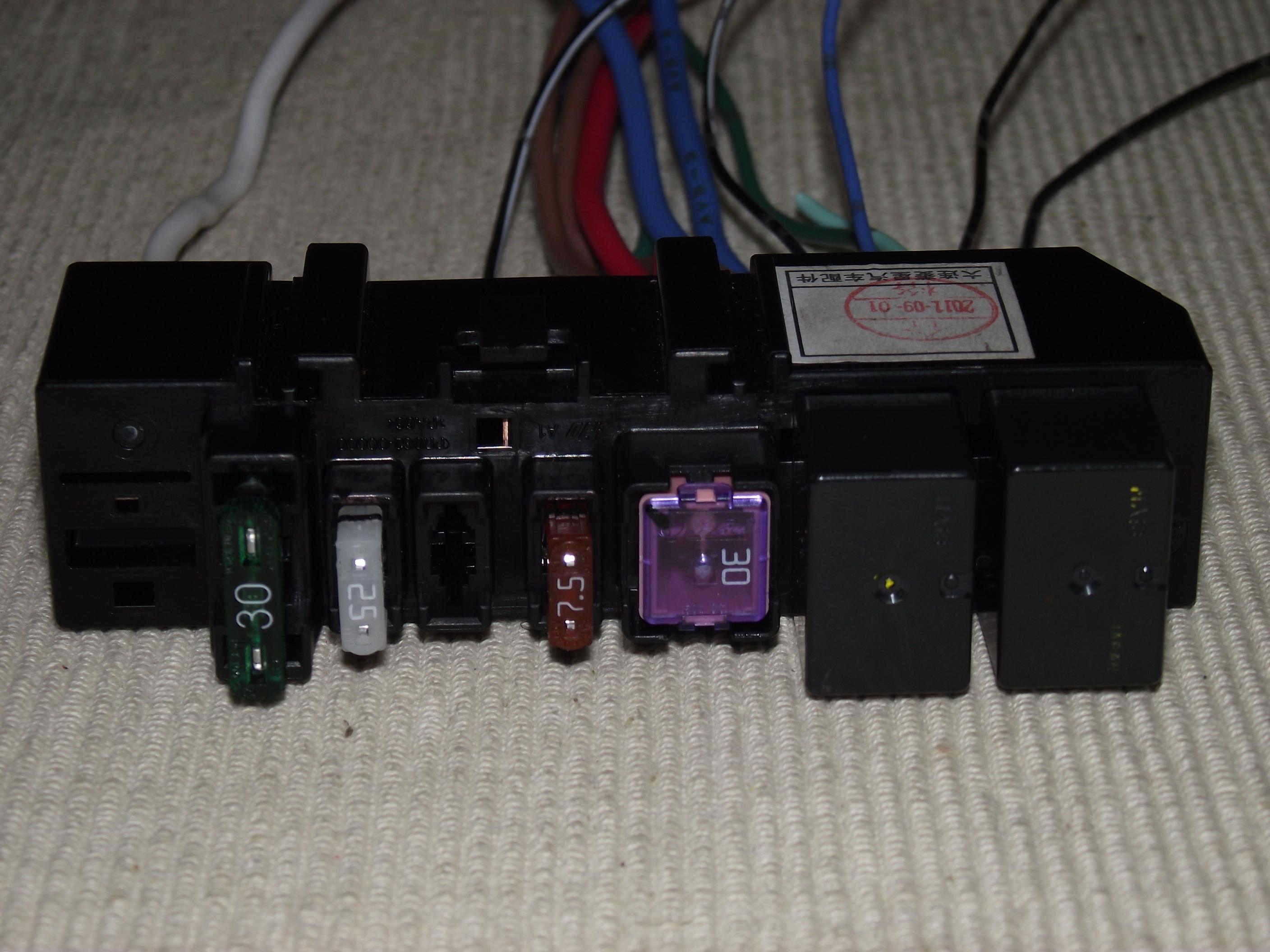

Front View: A Mini 30Amp Fuse & Mini 4 Pin Relay (far right) as shown in the Sub Board behind the Glove Box (bottom of first diagram)
Rear View: You can see the (Cut-Wire) Light Green "Power Wire" which feeds power to the "Seat Heater Switch"
Seat Heater Switch
Seat Heater Switch "White Plug" (with wires already inserted)
This Plug "DOES NOT" come with the OEM Switch purchase.
It's part of the Factory OEM Wiring Harness found under the Cup Holder in the Console.
If you "DONT" have this Plug (since you Don't have the Factory OEM Wiring Harness in your vehicle) --->
Then you will need to connect your wiring directly to each individual pin behind the switch.
Crimp wires to suitable size crimp connectors, then apply Heat Shrink to each to prevent Shorting Out with other wires.
I think these from Jaycar will fit... Link = 2.5mm Phone Type Crimp Connectors PT-4520 (15 pkt $2.95)
Note the "Heavy" Gauge Wiring
Red (Top Left) = "Hi" Setting for Driver Seat.
Green (Top Right) = "Lo" Setting for Drivers Seat.
White (Bottom Left) = "Hi" Setting for Passenger Seat.
Blue (Bottom Right) = "Lo" Setting for Passenger Seat.
Yellow (Bottom Left) = Power (Connected to the Green Wire coming from the Sub Board behind the Glove Box)
Note the "Light" Gauge Wiring
White (Middle) = Power for Switch Illumination (connect to Dash Lights Active Power wire)
Green (Top Right) = Ground/Earth for Switch Illumination (connect to chassis under console)
Black (Bottom Right) = Ground/Earth for Hi / Lo Switch (connect to chassis under console)
I Hope these diagrams & info Help anyone wishing to activate the Seat Heaters in their seats. (providing you "DO HAVE" the Heating Elements fitted in you Seats)
No Responsibility from Me will be Entered Into via what you do with your Lancer.
This Info is provided as a guide that works in my vehicle according to the Factory OEM Wiring Diagram.
You should be aware of electrical wiring principals, fuses, relays & connectors before attempting this project.
You are Responsible for whatever wiring changes and/or inclusions within your vehicle.
I have an MY09 Aspire which came factory fitted with seat heaters but NO switch, connectors or wiring harness to activate them.
In mid 2014, I was luck enough to come across a wrecking Lancer which had the seat heaters, switch, connectors & wiring harness etc.
So I purchased everything (switch, connectors & wiring harness etc) except the seat since I already had them.
I fitted it all, and both Seat Heaters work on either Hi or Low setting, the Switch lights-up when vehicle lights are turned on.
Here is a detailed "self drawn - wiring diagram" of the "Factory OEM" wiring layout --->
As fitted from the Sub Board behind the Glove Box to the Switch in the Centre Console to the Wiring Connectors under the Seats.
Right Click then select View Image to enlarlge each diagram
Note: The colors on this diagram are the same colors as the Factory OEM Wiring Harness colors.
Here is another "self drawn - wiring diagram" supplied to me from another US source.
To complete this project, you will need all the Factory Wiring & Connectors already in your vehicle
(check under the Cup Holder section in your Console)
If you "DO NOT" have the Factory Wiring Harness & Connectors --->
Then you will need to Supply & Fit your own Fuse, Relay, Wires & Connectors.
Front View: A Mini 30Amp Fuse & Mini 4 Pin Relay (far right) as shown in the Sub Board behind the Glove Box (bottom of first diagram)
Rear View: You can see the (Cut-Wire) Light Green "Power Wire" which feeds power to the "Seat Heater Switch"
Seat Heater Switch
Seat Heater Switch "White Plug" (with wires already inserted)
This Plug "DOES NOT" come with the OEM Switch purchase.
It's part of the Factory OEM Wiring Harness found under the Cup Holder in the Console.
If you "DONT" have this Plug (since you Don't have the Factory OEM Wiring Harness in your vehicle) --->
Then you will need to connect your wiring directly to each individual pin behind the switch.
Crimp wires to suitable size crimp connectors, then apply Heat Shrink to each to prevent Shorting Out with other wires.
I think these from Jaycar will fit... Link = 2.5mm Phone Type Crimp Connectors PT-4520 (15 pkt $2.95)
Note the "Heavy" Gauge Wiring
Red (Top Left) = "Hi" Setting for Driver Seat.
Green (Top Right) = "Lo" Setting for Drivers Seat.
White (Bottom Left) = "Hi" Setting for Passenger Seat.
Blue (Bottom Right) = "Lo" Setting for Passenger Seat.
Yellow (Bottom Left) = Power (Connected to the Green Wire coming from the Sub Board behind the Glove Box)
Note the "Light" Gauge Wiring
White (Middle) = Power for Switch Illumination (connect to Dash Lights Active Power wire)
Green (Top Right) = Ground/Earth for Switch Illumination (connect to chassis under console)
Black (Bottom Right) = Ground/Earth for Hi / Lo Switch (connect to chassis under console)
I Hope these diagrams & info Help anyone wishing to activate the Seat Heaters in their seats. (providing you "DO HAVE" the Heating Elements fitted in you Seats)
No Responsibility from Me will be Entered Into via what you do with your Lancer.
This Info is provided as a guide that works in my vehicle according to the Factory OEM Wiring Diagram.
You should be aware of electrical wiring principals, fuses, relays & connectors before attempting this project.
You are Responsible for whatever wiring changes and/or inclusions within your vehicle.
Last edited by SAM-24A on Sun Aug 07, 2016 10:27 am, edited 5 times in total.
Sam .....
Merlinised MIVEC - AspiRe 2.4L
Merlinised MIVEC - AspiRe 2.4L
- Mystique
- Lancer MASTER
- Posts: 1729
- Joined: Mon Sep 30, 2013 8:28 pm
- Location: Launceston, Tasmania, Australia
SAM-24A wrote:The seat warmers take 5mins or more before you notice then getting hot, and thats with you sitting them.
Lol?
Mine warm up straight away
Daily: My14 Lancer LX
Weekender: 2009 MY09 Ralliart Hatch
My Mod Thread: viewtopic.php?p=324612#324612
Instagram: http://instagram.com/mitsii_lx
Weekender: 2009 MY09 Ralliart Hatch
My Mod Thread: viewtopic.php?p=324612#324612
Instagram: http://instagram.com/mitsii_lx
Yes they Pulse On & Off because each seats circuitry is controlled by a Thermostat.
Otherwise they would just keep getting hotter & hotter until the Heater Elements in the seat burn-up and possibly causing the seat to catch fire....
You can see in this Schematic Drawing that shows the Thermostat.
Otherwise they would just keep getting hotter & hotter until the Heater Elements in the seat burn-up and possibly causing the seat to catch fire....
You can see in this Schematic Drawing that shows the Thermostat.
Sam .....
Merlinised MIVEC - AspiRe 2.4L
Merlinised MIVEC - AspiRe 2.4L
-
- Lancer Newbie
- Posts: 31
- Joined: Thu Apr 15, 2010 5:04 pm
- Location: Torquay, Victoria , Australia
Anyone that's in interested. There is a heater switch and loom on eBay.
https://www.ebay.com.au/ulk/itm/111965656668
CJ LANCER HEATER SWITCH AND LOOM
https://www.ebay.com.au/ulk/itm/111965656668
CJ LANCER HEATER SWITCH AND LOOM
