Center console cubby
Posted: Tue Jun 15, 2021 4:52 am
by Tywhiteguy
I have the standard interior center console with the big empty space. I wanted to upgrade to the cubby doors. Do I have to replace the entire hvac control or is there a bracket I can attach to the existing console that will hold the cubby doors?
Re: Center console cubby
Posted: Tue Jun 15, 2021 5:25 pm
by bumblebee
out of interest, what is it your wanting to achieve at the end of the day by putting the cubby doors on?
they may be an alternative
Re: Center console cubby
Posted: Tue Jun 15, 2021 6:58 pm
by adamhumphrey

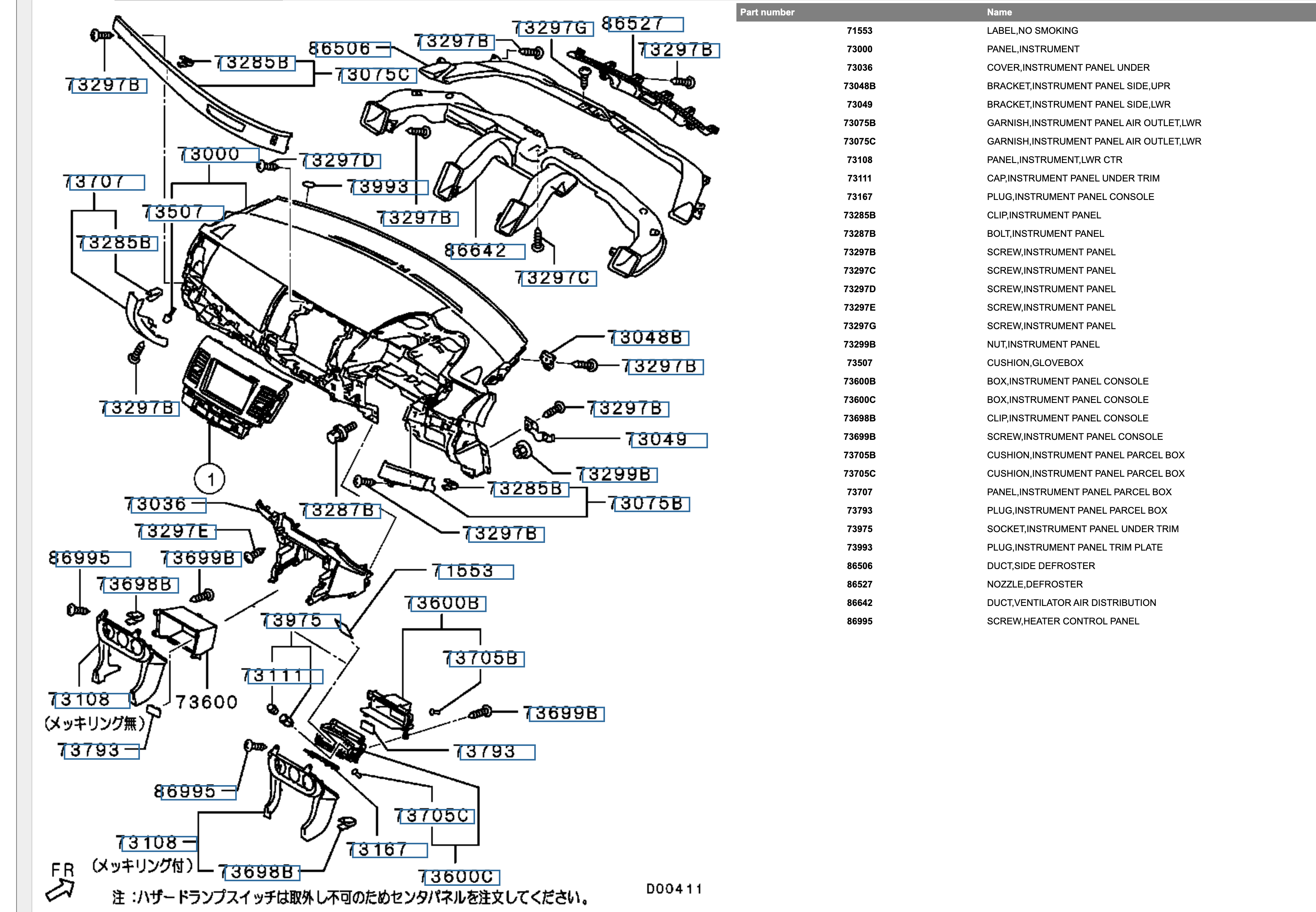

Here is a diagram best I could find. hopefully, it shows enough detail for you.
- Screen Shot 2021-06-15 at 6.51.32 pm.png (918.43 KiB) Viewed 20414 times
Re: Center console cubby
Posted: Wed Jun 16, 2021 6:54 am
by Tywhiteguy
Ok I may have to take that apart to familiarize myself but I alway just throw crap in the space I just want to clean it up or hide it if I need to
Re: Center console cubby
Posted: Wed Jun 16, 2021 7:40 pm
by bumblebee
ah ha
so by the sounds of it, you have the standard say ES interior and want to drop in the VRX interior?
the VRX has the doors underneath the air con controls.
its a straight swap out with the VRX interior, i have done this myself.
welcome to the CJ lancer
i have no doubt the console was designed first and the rest of the car was built around it
you need to remove the centre console first, you wont get the rest out otherwise
not sure if the VRX CVT has the doors your looking for but the manual does.
go hunting thru youtube, the centre console needs to come out and the fascia infront of the stereo
then you can swap it out
take your time and take photos of the screws and where they came from
cos they are all different sizes and thread type
Re: Center console cubby
Posted: Thu Jun 17, 2021 9:46 am
by Tywhiteguy
Exactly so it is the whole ac surround that needs to be swapped? Alright well I’ll have to keep searching then
Re: Center console cubby
Posted: Thu Jun 17, 2021 8:03 pm
by awood
I'm a little perplexed? I admit , that's not hard.
I know some early base models came with no center arm/elbow padded rest lid or cup holder lid. Are these the parts your talking about?
Your first post does mention , "Doors" , plural.
My beast ES SPORRRRRRRRRT does come with all these lids , I'll snap some pics soon and post up so we all know what it is you need.
Re: Center console cubby
Posted: Thu Jun 17, 2021 8:09 pm
by awood
[quote
i have no doubt the console was designed first and the rest of the car was built around it
[/quote]
Only FOMOCO do that.
Re: Center console cubby
Posted: Thu Jun 17, 2021 8:12 pm
by awood
[quote
you need to remove the centre console first[/quote]
Old mate is asking about the CENTER console though?
Re: Center console cubby
Posted: Thu Jun 17, 2021 8:18 pm
by awood

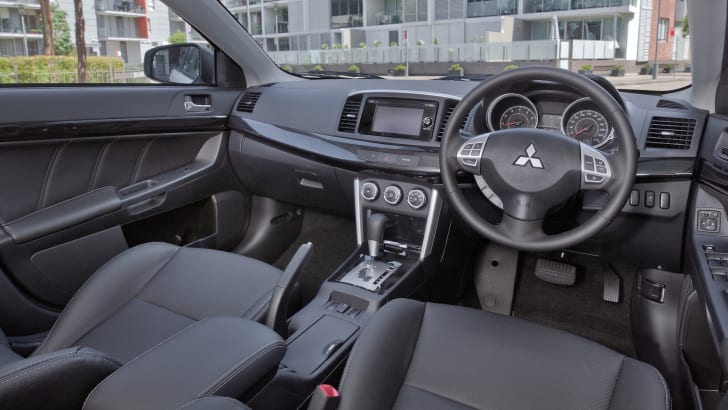

- f606152638b18db2c95d34d00c54d682.jpg (42.46 KiB) Viewed 20374 times
See the arm rest and the cup holder.
Re: Center console cubby
Posted: Thu Jun 17, 2021 8:29 pm
by awood

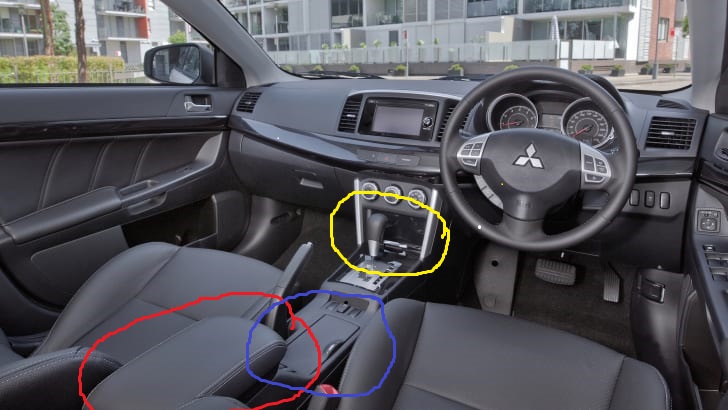

What colour part is it?
- f606152638b18db2c95d34d00c54d682.jpg (79.55 KiB) Viewed 20372 times
Re: Center console cubby
Posted: Fri Jun 18, 2021 1:55 am
by Mars1811
I believe Tywhiteguy is after the yellow part; the little bin forward of the shifter.
On the base lancers they were just a shallow in the plastic, on higher trims they had clicky doors.
Re: Center console cubby
Posted: Fri Jun 18, 2021 6:03 pm
by awood
My particular motor vehicle only has the one door in that position that flips up.
It covers the 12v power outlet and the phone charger plug leaving a small space to the right.
Re: Center console cubby
Posted: Fri Jun 18, 2021 7:46 pm
by bumblebee
good luck trying to remove the yellow part without removing the entire centre console that goes back between the seats
hence why i said the CJ had the centre console built first and then the rest of the car was built around that.
the colour of the parts is a small cross hatch of squares, the cross hatch is white and the base nylon/plastic is black
Re: Center console cubby
Posted: Sat Jun 19, 2021 9:22 am
by cooyarpjm
I recently changed mine over (i have the very first of the VRX's which only had the open space and 2L engine), all you need to pull out is the cup holders forward not the entire console. Unfortunately i cannot tell you if you can just change over the cubbies, but you do need to replace the gear shifter surround and you have to remove the section around the HVAC because the cubbies screw in from behind.
